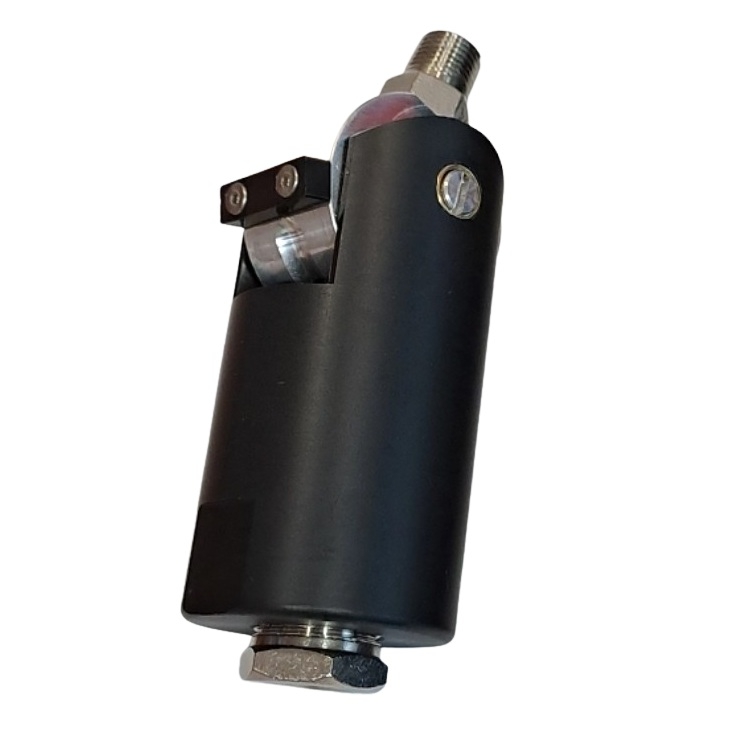

SN01

Smart joint that disables the brush when no credit is available

The SN01 joint is the smart system designed to optimize the use of the brush in self-service car wash bays.

Easy to install even in retrofit, it can be applied directly to the existing brush without the need for modifications.

Its operation is simple and effective: the brush can only be used when credit is available. Once the purchased time has expired, the joint automatically deactivates, making the brush swing freely and therefore unusable.

For proper operation, the SN01 requires a minimum inlet pressure of 2.5 bar to the brush arm and a minimum flow rate of 4 liters per minute.

⚠️ The SN01 is not compatible with brushes supplied by high-pressure pumps.
It is recommended not to exceed 10 bar of pressure.

document Download the product sheet

Technical data

Max pressure (bar) 10
Min pressure (bar) 2,5
Min flow rate (l/min) 4
Body delrin and aluminum

Part numbers

PN INLET OUTLET JIT DELIVERY
722SN01 G 1/4" F G 1/4" M

MORE INFORMATION

  • Made in Italy
