Mecline

TZ 100

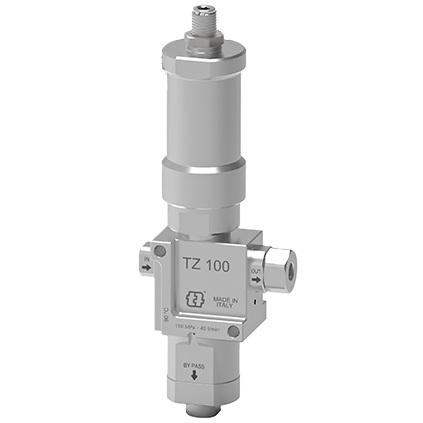

Mecline TZ100 "zero type" unloader valve

The Mecline TZ100 by-pass valve can work with pressures up to 1000 bar and with flow rates up to 40 l/min. The TZ100 is a "zero" valve: it means that the valve is equipped with an automatic system that allows to discharge to the by-pass the residual pressure in the delivery line when the gun is closed. This sophisticated system has many advantages for the operator in terms of safety and comfort. The body is made of stainless steel, a material that ensures resistance to very high pressures The performances offered by the TZ100 make it suitable for use with pumps designed for industrial cleaning purposes and more generally in cleaning contexts that require very high pressure such as sandblasting and paint removal.

document Download the product sheet

Technical data

Max pressure (bar) 1000
Max flow rate (l/min) 40
Body stainless steel

Part numbers

PN flow rate (l/min) INLET OUTLET BY-PASS JIT DELIVERY
224072201012 11,5 - 13 G 3/8" F G 3/8" F G 3/8" F
224072201013 13 - 15 G 3/8" F G 3/8" F G 3/8" F
224072201014 15 - 18 G 3/8" F G 3/8" F G 3/8" F
224072201015 18 - 21 G 3/8" F G 3/8" F G 3/8" F
224072201016 21 - 25 G 3/8" F G 3/8" F G 3/8" F

MORE INFORMATION

  • Brand: Mecline
  • Made in Italy
