R+M Suttner

VNR-BP

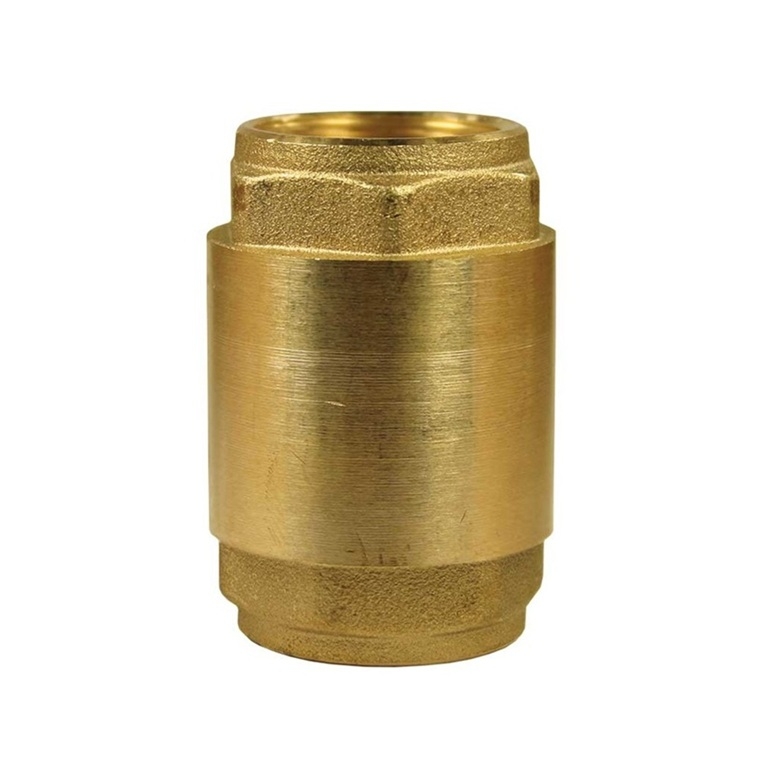

Brass low pressure check valve

Brass non-return valve with rubber seal and stainless steel spring. Compact (height 53 mm) and versatile, it operates in any position, preventing fluid backflow. Designed for low-pressure applications up to 16 bar, suitable for water from 0°C to +90°C.

document Download the product sheet

Technical data

Max pressure (bar) 16
Body brass

Part numbers

PN FITTINGS SEALS JIT DELIVERY
216733004 G 3/8" FF rubber
216733054 G 1/2" FF rubber
216733104 G 3/4" FF rubber
216733204 G 1" FF rubber
216733304 G 1 1/4" FF rubber

MORE INFORMATION

  • Brand: R+M
