AQUA

HC151+CST E

Analog electromagnetic dosing pumps

Analog electromagnetic dosing pumps with vertical mounting and easy installation. It is an economic and reliable product, designed to work with a wide range of flow rates. The HC151 series pumps are equipped with analog controls.

TECHNICAL FEATURES :

  • Pump body: PP
  • Pump case: PP
  • Diaphragm: PTFE
  • Spheres: Pyrex
  • Valves: 1/2 "- PP
  • O-ring: EPDM
  • Spring - ball injection valve: Hastelloy - Pyrex
  • Injection fitting - Connection: PP - 4x6
  • Foot valve: PP
  • Wall mounting with wall fixing bracket included in the installation kit

document Download the product sheet

Technical data

Max pressure (bar) 20
Max flow rate (l/h) 20
Power Supply 100-240 Vac - 50/60Hz*
Seals epdm
* available in 12 and 24 V versions

Part numbers

PN MAGNET TYPE CURVE START (L/H-BAR) CURVE END (L/H-BAR) JIT DELIVERY

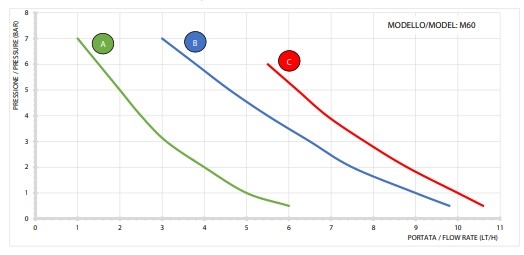

236ADA1001231000 M60 A 1 - 7 5 - 1
. M60 B 3 - 7 9 - 1
. M60 C 5,5 - 6 10 - 1

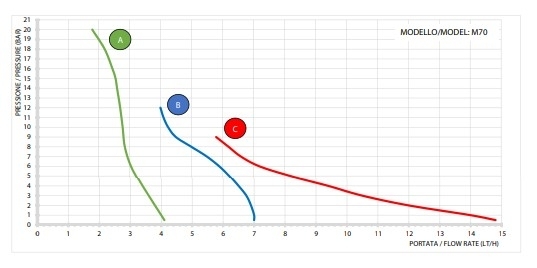

236ADA1002231000 M70 A 1,8 - 20 4 - 1 Check
. M70 B 4 - 12 7 - 1
. M70 C 5,8 - 9 14 - 1

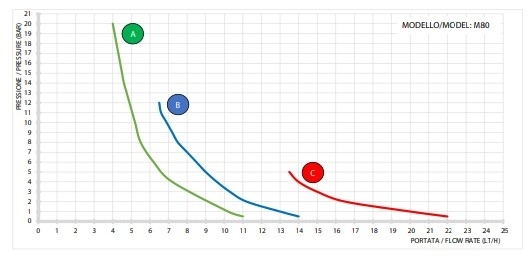

236ADA1003231000 M80 A 4 - 20 10 - 1
. M80 B 6,5 - 12 13 - 1
. M80 C 13,5 - 5 20 - 1
SPARE PARTS:
236ADSP90000I01N EPDM pump body spare parts kit Check
236ADSP6200027 EPDM injection valve Check

MORE INFORMATION

  • Brand: AQUA
  • Vertical mounting
  • IP65 protection
  • Made in Italy
