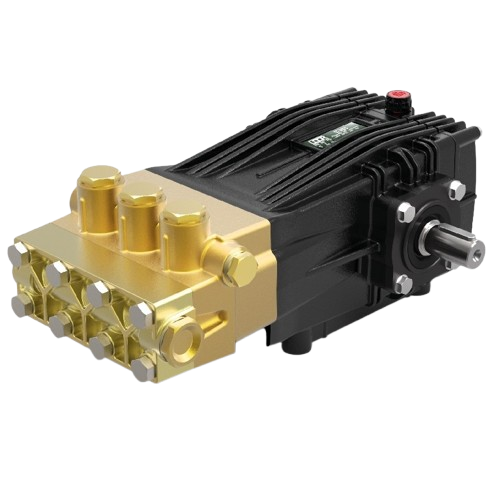

The Hawk plunger pumps from the MPX 500 series are designed to work with a maximum pressure of 500 bar and a higher water flow than the one supplied by the most popular 500 bar pumps on the market. In fact, the MPX 500 pumps can reach a maximum water flow rate of 30 l/min at 1450 rpm. These performances make the MPX 500 suitable for use on washing systems designed for industrial cleaning purposes.
Download the product sheet
| Max pressure (bar) | 500 |
| Flow rate (l/min) | from 25 to 36 l/min |
| Manifold | brass |
| PTO | male shaft Ø 30 mm |
| PN | RPM | FLOW RATE (L/MIN) | MAX PRESSURE (BAR) | MAX POWER (KW) | JIT DELIVERY |
|---|---|---|---|---|---|
| 12MPX2550 (MPX2550) | 1450-1740 | 25-30 | 500 | 23,8-28,6 | |
| 12MPX3050 (MPX3050) | 1450-1740 | 30-36 | 500 | 28,5-34,2 |
