Mecline

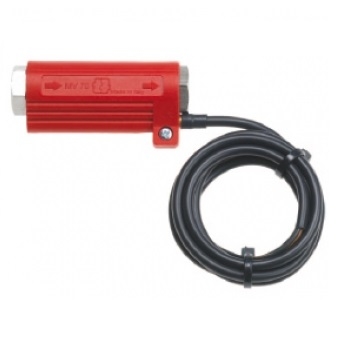

FS 26

High pressure flow switch

The Mecline FS26 flow switch can work with pressures up to 280 bar. It is an electromechanical device designed to work with high pressure water. The passage of the fluid inside the flow switch causes the movement of a magnetized piston which opens an electrical circuit. The FS26 is characterized by its high reliability and intervention and, thanks to the its performances, it can be applied on professional pressure washers.

document Download the product sheet

Technical data

Max pressure (bar) 280
Max flow rate (l/min) 30
Body brass
Current intensity (A) 3
Voltage (V) 250
Cable length (mm) 1570

Part numbers

PN FITTINGS PRESSURE GAUGE PORT OPERATING FLOW RATE 1 (L/MIN)* OPERATING FLOW RATE 2 (L/MIN)** JIT DELIVERY
224090200005 G 3/8" M NO 2,2 2
224090200006 G 3/8" M G 1/4" F 2,2 2
*vertical position
**horizontal position

MORE INFORMATION

  • Brand: Mecline
  • Electrical insulation: IP55
  • Available with Delrin shutter
  • Made in Italy
