Emiltec

REDSPIN

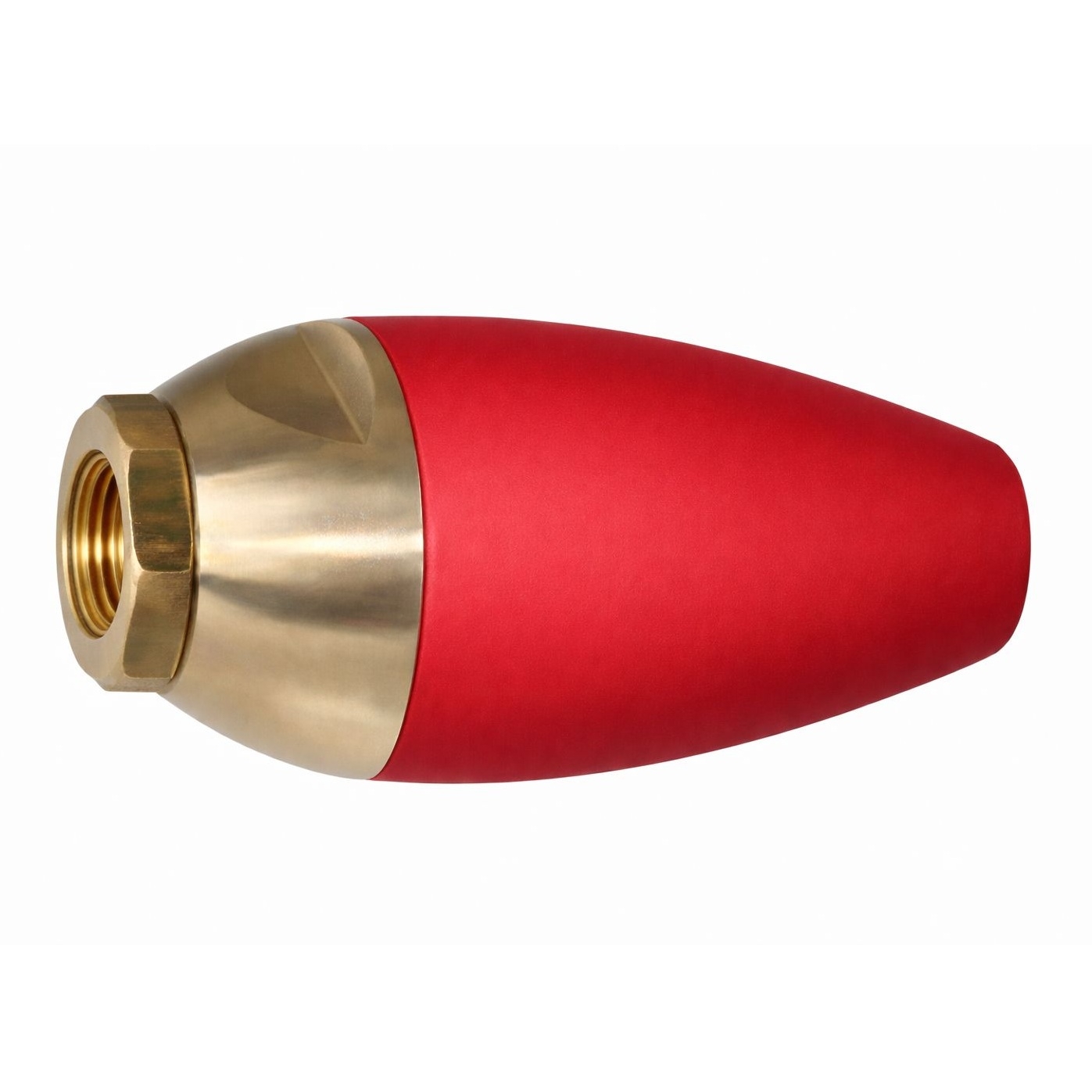

RedSpin rotating nozzle

The main differences between BlueJet/RedSpin nozzles and standard rotor nozzles are material quality, performance, and durability.

Materials and Construction
The RedSpin is made of high-performance materials, including technical ceramics, durable plastics, and forged brass. These components provide wear and corrosion resistance, even when using chemical detergents or abrasive media. Ceramic elements ensure a long service life and consistent performance, reducing degradation typical of lower-quality nozzles.

Performance
The nozzle combines the concentrated impact of a point jet with the coverage of a rotating fan jet, optimizing cleaning efficiency. This allows direct impact on critical points while ensuring uniform water distribution across the surface. Lower-quality nozzles produce uneven jets, requiring higher pressure and flow to achieve comparable results, increasing energy and water consumption.

Applications
Designed for pressures up to 350 bar, the RedSpin maintains consistent performance under demanding conditions, making it suitable for professional and industrial cleaning tasks.

document Download the product sheet

Technical data

Max pressure (bar) 350
Max flow rate (l/min) 30
Body brass
Inlet G 1/4" F

Part numbers

PN NOZZLE SIZE REPAIR KIT JIT DELIVERY
d 03 216200456230
d 035 216200456235
d 04 216200456240
d 045 216200456245
d 05 216200456250
d 055 216200456255
d 06 216200456260
d 07 216200456270

MORE INFORMATION

  • Brand: Emiltec
  • Plastic protection
  • 20° cone jet
  • Ceramic inner parts
  • Made in Germany
