R+M Suttner

GREYFLEX 5/16

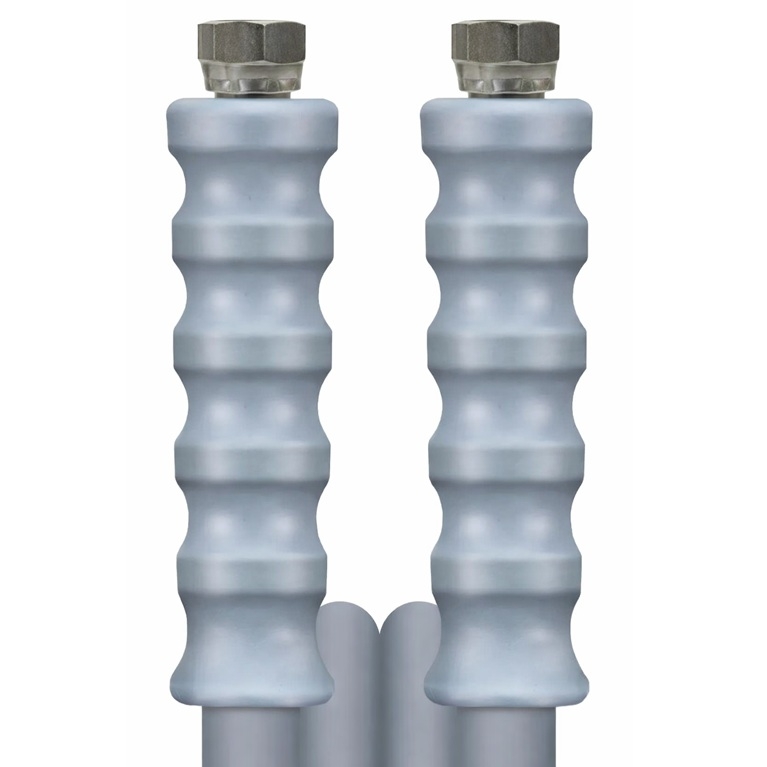

GREYFLEX 5/16" hose cut to measure and fitted

Greyflex is a high-pressure hose designed for reliability, flexibility, and ease of use in demanding environments. Thanks to the internal braid of brass-plated steel wire and the smooth thermoplastic elastomer outer cover, it combines durability and performance.

Ideal applications: food & beverage industry, fish farming, swimming pools. The smooth, stain-resistant surface ensures hygiene and easy cleaning.

Key features: extremely lightweight and flexible even at low temperatures, high abrasion resistance, resistant to grease, oils, UV, ozone, and weathering. Stainless steel fittings, crimps, and connections, with grey bend restrictors on both ends.

Technical specifications: nominal diameter 8 mm, max working pressure 250 bar, temperature range -40°C to +120°C, grey color, smooth cover. Connections 3/8" FF and 3/8" MM with grey bend restrictor.

Greyflex is the ideal solution for those seeking a reliable, durable, and easy-to-use high-pressure hose in the most demanding conditions.

document Download the product sheet

Technical data

Max pressure (bar) 250
Working temperature (°C) -40 / +120 (discontinuous)
Inner diameter (inch/mm) 5/16 - 7,9
Material steel braid with thermoplastic cover
Fittings material stainless steel
Colour grey

Part numbers

PN TYPE LENGTH (M) FITTINGS HANDLE JIT DELIVERY
216342201545109 FF 10 2 x 3/8"F swivel 2 x grey
216342201545159 FF 15 2 x 3/8"F swivel 2 x grey
216342201545209 FF 20 2 x 3/8"F swivel 2 x grey
216342201545259 FF 25 2 x 3/8"F swivel 2 x grey
216342201545309 FF 30 2 x 3/8"F swivel 2 x grey
216342201445109 MM 10 2 x 3/8"M 2 x grey
216342201445159 MM 15 2 x 3/8"M 2 x grey
216342201445209 MM 20 2 x 3/8"M 2 x grey
216342201445259 MM 25 2 x 3/8"M 2 x grey
216342201445309 MM 30 2 x 3/8"M 2 x grey

MORE INFORMATION

  • Brand: R+M
  • Made in Germany
