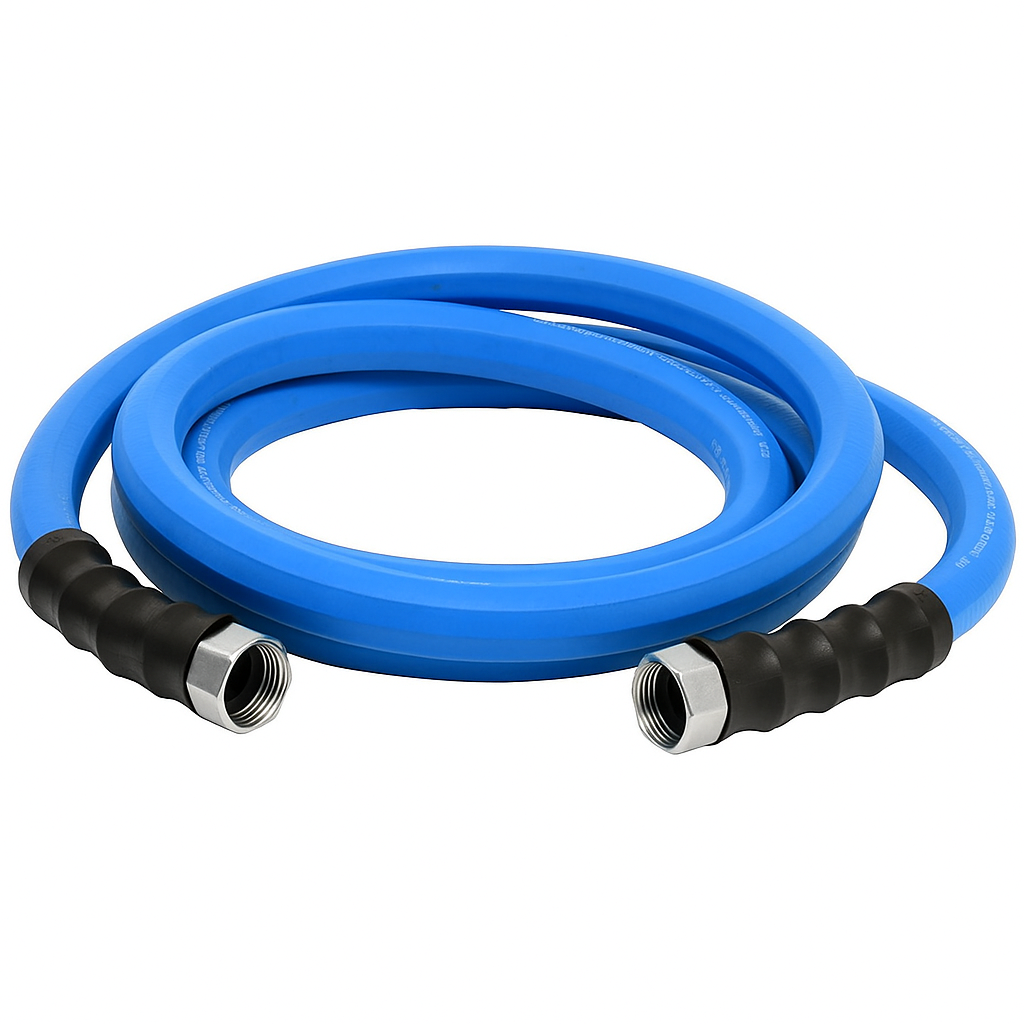

Long-length rubber hose ideal for transporting hot water, specifically designed for applications requiring food-grade compliance. Conforms to DM 21/3/73 and F.D.A. 1935/2004 (MOCA) standards.
Key features:
Operating temperature: -35°C ÷ +120°C
Inner layer: white EPDM rubber, food-grade and heat-resistant
Reinforcement: high-strength synthetic fibers
Cover: blue EPDM rubber, resistant to abrasion, heat and aging
Surface: smooth extruded
Marking: inked “H.T. - FOOD QUALITY F.D.A. - W.P. 15BAR +120°C”
This hose ensures safety, reliability, and long-lasting performance even in demanding conditions.
Max pressure (bar) | 15 |
Working temperature (°C) | -35 / +120 |
Diameter (mm) | 25x36 (1") |
Material | EPDM |
Colour | blue |
FITTINGS | 2 x g 1" f |
HANDLE | 2 x black |
PN | LENGTH (M) | FITTINGS MATERIAL | JIT DELIVERY | ||
---|---|---|---|---|---|
FW15BL0301 | 3 | stainless steel | |||
FW15BL0801 | 8 | stainless steel | |||
FW15BL1001 | 10 | stainless steel | |||
FW15BL1301 | 13 | stainless steel | |||
FW15BL1501 | 15 | stainless steel | |||
FW15BL2001 | 20 | stainless steel | |||
FW15BL2501 | 25 | stainless steel |
