PA

RL 26-PS L

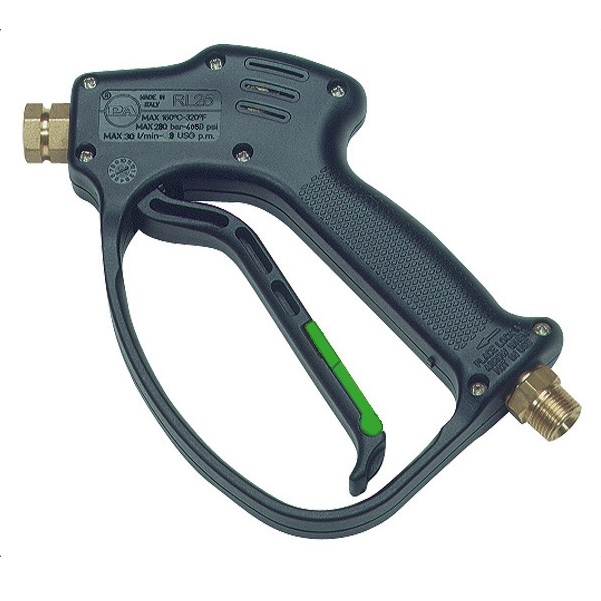

Weeping wash gun with lance

Version with integrated lance of PA RL26 losing gun. The PA RL26 weeping gun is designed to work with pressures up to 250 bar and flow rates up to 30 l/min. The weeping guns are used to avoid the stagnation of water inside the pipes: when the gun is closed a few drops of water continues to leak, thus preventing the liquid from freezing when the external temperatures are particularly low. The special antifreeze function together with compactness and low weight suggest the use of the RL26 with washing systems designed to be used by not necessarily professional users such as, for example, self-service systems for car washing.

document Download the product sheet

Technical data

Max pressure (bar) 250
Max flow rate (l/min) 30
Body brass

Part numbers

PN WEEP. FLOW RATE (L/MIN) LENGTH (MM) INLET OUTLET JIT DELIVERY
1130076700 1,1 700 sw. G 3/8" F* Npt 1/4" F Check
1130076706 0,6 700 sw. G 3/8" F* Npt 1/4" F Check
*SWIVEL INLET

MORE INFORMATION

  • Brand: PA
  • Swivel inlet
  • Equipped with nozzle holder and nozzle protection
  • The lever is fitted with a safety latch to prevent involuntary actions
  • Made in Italy
